I’ve been using projectors in my photoshoots for many, many years now and I’ve been writing about how to utilise the power of projectors in your shoots for nearly as long too.

*Projectors offer a seemingly limitless amount of creative options.*

As I’ve always said, I believe projectors to be one of the most versatile and creative tools we have at our disposal today and they’re becoming more and more accessible as each year passes. So why don’t we see more of them in photoshoots?

If you’re not familiar with what I’m referring to when mentioning projectors, I’m simply talking about the regular projectors you may have had at home at one point or another to watch football or movies. Granted, projectors were more popular years ago as you could achieve a huge screen size at home with minimal space requirements, but with TVs dropping in price and them offering wafer-thin screen sizes without them taking up half your living room, projectors aren’t as common as they once were.

I think one reason many people are put off by projectors initially, is cost. Any quick search online regarding the cost of a new projector is often met with a 4-figure response, but these expensive projectors aren’t necessary for what we want to achieve. Years ago when I want to test out some lighting ideas with a projector, I simply bought a cheap second-hand one on eBay for less than £200. It seemed to do everything I needed, albeit with a few minor limitations, so I never bothered to upgrade it to a fancier one.

So if don’t have a projector yet and are interested in picking one up but don’t know where to start, I’ll link an old article of mine where I break down exactly what photographers should be looking for when purchasing one: What's the Best Projector to Buy for my Next Photoshoot? I will also just mention, that although that article was published back in 2019, it’s still one of my most popular articles ever written. People are slowly cottoning onto the fact of just how creative these tools can be.

Basic, but extremely effective!

I’ve spoken about projector setups in the past and although I have an entire workshop dedicated to the slightly more advanced and creative projector setups, the one I’m sharing here today is fairly straightforward. That’s not to say it isn’t a great setup though, far from it and once you’ve mastered this basic technique, it opens up an entirely new world of creative possibilities.

The Lighting Setup

As always, to avoid the impatient among you from skipping the entire article just to look at the lighting diagram (you know who you are), here’s what we’ll be shooting today.

I’ll post more BTS of this setup below, but for now, let’s break down what’s going on.

TL;DR/ADHD/Artist Setup Explanation

Set up projector with image on back-wall behind model
Set up V-flat in front of model with blue light firing into it
Place white light directly above model

What You Will Need

Projector - I spoke about this above, but you don’t need a super-expensive projector and if you’re not sure what projector is right for you, check my article on what to buy.
2 Lights - I’m using Rotolight AEOS 2 LED lights in this shoot, but you can swap these out for alternatives if need be.
1x V-flat - There is no way you don’t have one of these yet, as last year I showed you how to make a cheaper V-flat for yourselves. If you missed it and want to catch up with the rest of us, here’s the article: DIY Foldable V-Flats
Boom or C-stand - I’m using a C-stand in this setup, but I’m only using it to place a light directly above the model. You can sub this out for a boom, or you can use any other tool you may have to get the light directly above the subject.
Black velvet - I always have a few sheets of black velvet about to use as flags to block light. In this setup, I’ll be using a sheet of black velvet to surround my top light to stop any stray light from bouncing around the set.
Spiral blanket hanger - This is this setups ‘wildcard’ and if you’ve been following my -Technique Tuesdays- for a while, you’ll know I often have at least one seemingly random object in the mix. This time around, it’s a spiral blanket hanger!

Camera Settings

Camera - Nikon D850
Lens - 24-70mm f2.8 / 105mm f2
Shutter Speed - 1/125th
Aperture - f2
ISO - 160
Kelvin - varies based on shot from 3000K - 6500K
Focal Length - 105mm / 70mm

The Results…

Click to fit any of the shots below to your screen.

Breaking it Down

As you can tell from the shots above, there isn’t anything too complex to break down here. We have a projected background behind, with our model in the foreground being lit by a very directional top light along with a subtle coloured fill.

But let’s explain what everything is doing.

Spiral Blanket Hanger

Look, let’s expose the elephant in the room right away. What’s this spiral blanket hanger all about?

I wasn’t aware these things were even a thing, but as I was looking for a metal spiral to support my black velvet around my light, I came across them. Their ‘real’ job is to hang sheets and blankets up in small spaces and it looked to be a perfect solution for what I was after.

If you’re still not sure how I intended to use it, take a look at the images below. Click on any of them to enlarge them.

Before I explain this, I’m sharing this with you in confidence. If any of these shots end up on @shi**yrigs, I’ll find you!

Why the contraption?

One issue with working with multiple light sources in smaller spaces is one light affecting another light, or light contamination. For this setup, I wanted to have a projected image on the background behind my subject and then light my subject separately in the foreground. Long-story-short; to make the image bigger on the background to fill the scene behind the subject, you have to move your projector further away, but to do this, your subject may get in the way of the projected light. There are ways around this, like using a rear-projection technique or even placing the projector up high and shooting it over the subject, but again, this needs a lot of space.

*Moving the projector further back, results in the projected image hitting the model.*

You could of course bring the model further forward to compensate for this, but then you, the photographer, also has to be further away and this makes the background image smaller in your shot unless you use a longer lens to compress the foreground and background…. I promised to make this a long-story-short, so essentially what needs to happen for this to work, is your subject needs to be fairly close to the background so as to keep the projected image nice and big in your shot. With the subject being close to the background, we need to ensure that none of the lights illuminating the model, fall onto the background.

Barn doors often have gaps between each door that let a lot of light out.

This is where the DIY cowl on my light comes in, as although that light is very close to the background, the black velvet cowl stops any of that light from contaminating the projected image behind. It sounds overly complicated, but essentially the cowl just enables me to very precisely control the spread of light from above. Some of you may suggest barn doors as an alternative here, but barn doors are pretty crap in reality, as barn doors often have huge gaps between each of the four doors and this allows a lot of light to spread between them. It’s for this reason, I rarely use them on set.

Affixing the light-cowl

The way I attach and place my velvet light cowl over the light will vary wildly based on the type of light you have, and the way you attach your light overhead will also affect this too. I’m using a Manfrotto Super-clamp to attach everything to the C-stand, and then attached to that is an extension arm holding a Lite-Tire swivel and lastly, a mini-spring clamp is holding the metal spiral.

There must be far better ways to accomplish the same thing here, but seeing as I had a bunch of lighting grip and clamps here already, I just cobbled this together. If you have alternative recommendations, by all means, let me know.

Here are the links if you’re interested:

Cowl Adjustability

One thing I like about this cowl is the ability to adjust the amount of light being funnelled down. Due to the spiral metal loop, I can completely encase the light or I can leave a gap at the front to spill more light forward if needed. The other benefit of using black velvet fabric on the ring above is the ability to adjust the depth of the chimney of fabric up and down. If I want a very deep focused tube of light, I can let a lot of the fabric hang down, but if I only want a little amount of control, I can raise the fabric up to allow more light to spread.

I appreciate half the article is about a blanket hanger, but I know that if I didn’t explain it, I’d get a ton of questions on it and to be fair, I think its a pretty cool and very cost-effective solution to a lighting problem that you may well encounter yourself at some point. So here are all the details if you wanted to try out this setup yourself.

Lastly… I promise.

These blanket driers usually come in round spirals, not in the geometric spiral shape you see me using here. It’s worth getting the one with straight curves like mine as it makes it easier to clamp and also easier to enlarge when like this. I actually opened up my spiral a little to accommodate the AEOS 2 light, but you may not need to with yours.

Fill-Light

I’ve just explained the top light as well as the velvet cowl that controls the resulting light, next we need to look at what we’re going to do with all those shadows created by that very directional light directly overhead.

Adding a fill light isn’t too tricky and there are a few ways you can go about it, but first I’ll explain what I used.

My fill-light was another Rotolight AEOS 2 and this was pointed into one of my DIY V-Flats. Both of which were positioned just out of shot to camera-right.

If you missed my in-depth article on making your own DIY V-Flats, you can catch up via the link here: DIY Foldable V-Flats

As you can see from the shot above, I set my light to a colour that was already present in my image being projected behind the subject. That way, any fill light we see on the model in the foreground of the shot, takes on the appearance of the colours behind and this all helps to tie the shot together. Side-note: One thing I really like about the RGB Rotolight LED here, is the ability to fine-tune the colour to exactly match whatever projected image I have. This is trickier to do with coloured gels as you often don’t have exactly the right colour on-hand.

If you’re not too bothered about your image looking amazing, you could always substitute this bounced light with a large softbox or umbrella here instead.

Projector Placement

As I mentioned in the spiral-hanger section above, the projector is off to camera-left and pointed towards the background. The placement of this can be tricky as we’re looking to achieve a few things.

If you position your projector correctly, you should be able to keystone out any distorted lines. Even in shots like this that have very pronounced leading lines.

An image that isn’t too distorted. If we place our projector too far to one side and shine it onto the background, we won’t be able to correct the image distortion via the internal keystone options on the projector.
No projected light on the model. We want to light the background, but not the model as she will be lit separately with other lights.
A large enough image to fill the background. This will depend on the lens length you use, For example, you’ll need a smaller projected image behind the subject if you’re using a 105mm compared to a 70mm lens.
Image orientation used. I’m using portrait orientation images behind my model as I’m shooting photos with my camera in portrait orientation. I have to affix my projector in an upright position to do this, but if you want to shoot landscape shots, you won’t need to worry about that.

The above points are all worth considering and you’ll need to play with what fits with your room or shooting space. As you can see in the lighting diagram above; I ultimately went for a projector position just off to my left that was as close to hitting the model without the light touching her. This meant I was able to get a big enough image without the distortion being too dramatic. In fact, you can see that I was able to pretty effectively correct any distortions in the image behind and this is especially noticeable in the leading-lines of the corridor shots behind the model. The distortions that are created by placing the projector off-axis like this can be a pain to correct. It’s worth practising with images behind the subject that don’t have any straight lines or geometric patterns at first.

Consider your projected image

There is practically no limit to how creative you can get with the image behind your model, but here are a couple of pointers to get you started.

Look for an image that has some lighting direction already present. You may have noticed that all the images I chose to project, had a very noticeable top-light in them. From the corridor lights to the moonlight streaming through the trees above, all the images behind the model had a strong directional light above. I chose these as I knew that the model would have a very strong directional light on her and I wanted the background to match. It seems obvious I know, but it will look really odd if you don’t try to match the background and foreground light like this.
Consider the colours. I haven’t spoken about the colour differences in projector bulbs compared to flash and LEDs in this article and if you’re interested in some of the more detailed topics about using a projector, you’ll have to check out my Art of Projection workshop. But one way you can cheat the issue of mismatched colour balancing in various lighting sources is to lean into a heavy colour cast. You may have noticed that the projected images all had a colour to them and I do this to hide the inherent colour of the projector bulb. Finding a stylised image like these will help with the colour grade later on and leaning into a colour like this saves a ton of time over trying to match colours and Kelvins on the day.

Points to Remember

If your gauge of difficulty is based on how many lights you use in a shot, then this setup isn’t too tricky. That being said, there are a few areas you need to be mindful of, especially if you’ve never used a projector in your shoot before.

Keep the projected light from hitting the model. We want to project an image on the background, not light the model with our projector. Try to break this setup into two parts; the background lighting and the model lighting and keep them both separate.
Keep the subject light off of the background. See point one above, but essentially we need to keep all of the subject lights off of the projected image behind. If space is tight, you can bring your model in close to the background wall, but in doing so, be sure to use a very controlled light on the model. In this setup, I used a DIY light-cowl to keep a very directional light above the model from spilling onto the background. I know it looked a little janky, but it was surprisingly effective!
Consider your projected image. There is practically no limit to how creative you can get with the image behind your model, but here are a couple of pointers to get you started. Look for an image that has some directional lighting in it, that way you can replicate that light on your model. By doing this, you create a more cohesive image over choosing a flat background and adding dynamic lighting to your subject which immediately looks fake. Also, consider colours. I’ve found it better to choose a background with a tighter colour palette, or at least one with analogous colours. Again, this helps to sell the scene when the background colours are easy to match on the subject.
Decide whether you want to create an artistic shot or fool the audience. I’ve personally used projectors to both fool the audience into believing the projected background is real, as well as simply use the projected image as a creative tool to add interest to a background. There’s no right or wrong answer here, but I will say that simply using a projector for creative effect, is easier than using it to replicate a real scene. In this shoot, the singer/model had a bold red leather jacket they wanted to wear so I decided to use a very blue background to compliment and contrast that jacket. The scene looks somewhat believable, but I’m using it for creative effect and colour-contrast over a realistic environmental shot. It’s worth considering which you want to achieve before setting up.

Good luck guys and if you give this one a try, please let me know how you get on. Plus, if ever want some feedback on your shots, be sure to post them in my -Share-a-Shoot- every Monday on my Facebook Page.

If you have any questions about anything then pop them in the comments below. Enjoy and stay creative!

Featured model/singer: Eli Annina

Online One-2-One Workshops Now Available

||

Online One-2-One Workshops Now Available ||

If you’re looking to take your knowledge of projector photography further, I run online one-2-one workshops of my very popular ‘Art of Projection’ course. To learn more and see what other online courses are available, check the link below.

Online Workshops

Products Used…

Although I am sharing my own personal thoughts and findings about the lights mentioned in this article, many of you will want to know that I am now an ‘‘Master of Light’ for Rotolight. As such, I have been given a discount code to share with you when purchasing any of their products via the Rotolight website. Use my code ‘JAKEHICKS10’ when purchasing and you’ll save a bunch of money and I will enjoy a beer in your honour for doing so.

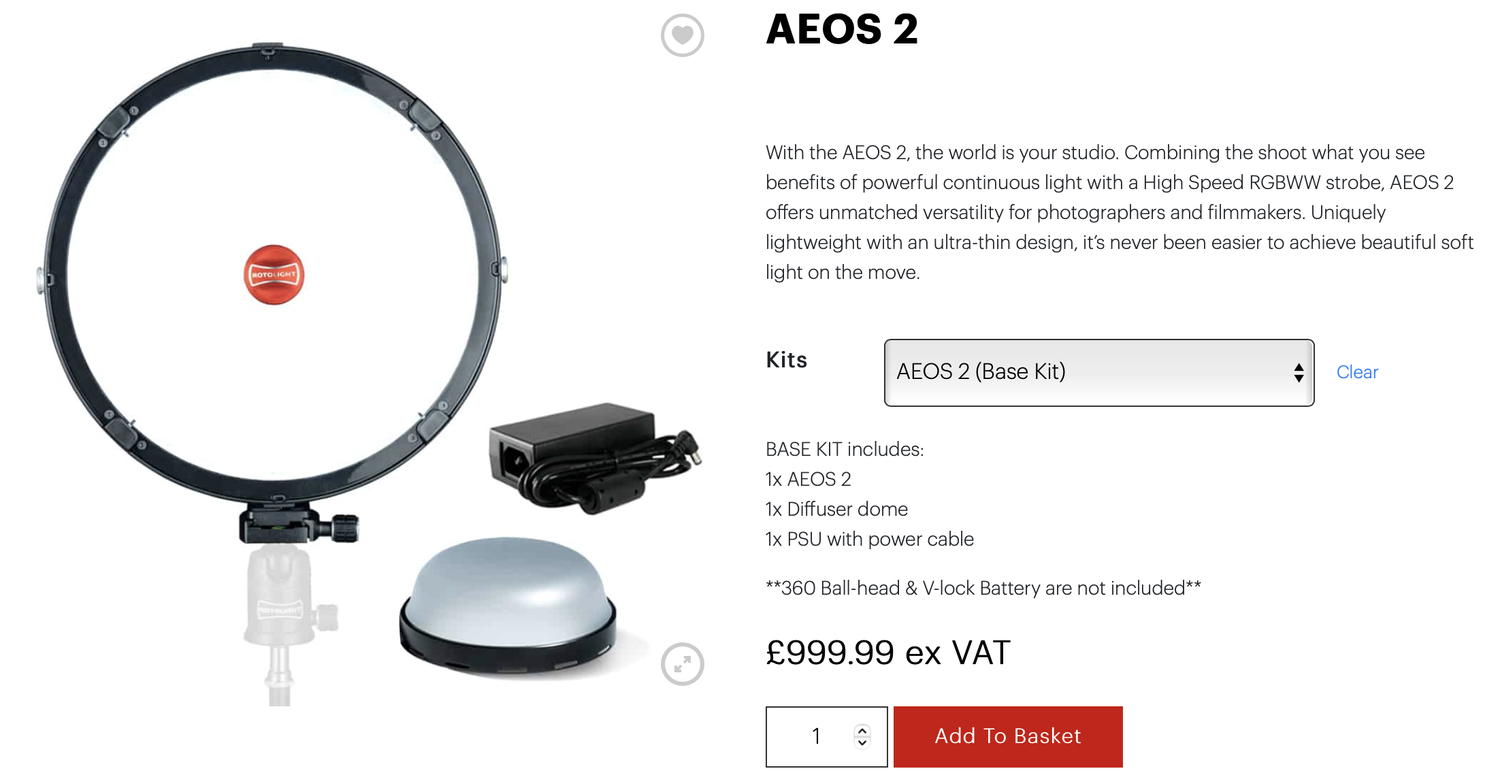

Rotolight AEOS 2

The AEOS 2 is one of the newest lights to market from Rotolight and with the design goal of bringing the majority of the features from their flagship Titan to an affordable package, I’d say they succeeded. This light is unfathomably lightweight for its output and features, plus everything is instantly accessible on the back of the light via a full-colour touch screen!

AEOS 2 Website Link

Customisable Lighting Cowl Adjustment Brace in Argenteous Silver

Look, we both know you read this whole article just to get your moist-mitts on the link to my patented (pending) lighting cowl. And that’s okay. The wait is over, here it is.

Definitely not just a cheap metal spiral

Thank You

As always, thanks for checking out this article and spending a little bit of your day with me here. I hope you found it useful and if you left with a little more knowledge than when you arrived, it’s been worth it.

If you have any questions or comments, or if something doesn’t make sense, by all means, fire away in the comments below and I’ll do my best to answer what I can. Thanks again and I’ll see you in the next one.

Don’t forget to sign up to my newsletter to be sent all of these photo tips and techniques articles every month in case you miss one.
