The title of the article may be a little opinionated regarding "refining" a classic lighting setup because I'm fully aware that there is a time and a place for every lighting technique; but for me this little addition to an old technique improved the final image.

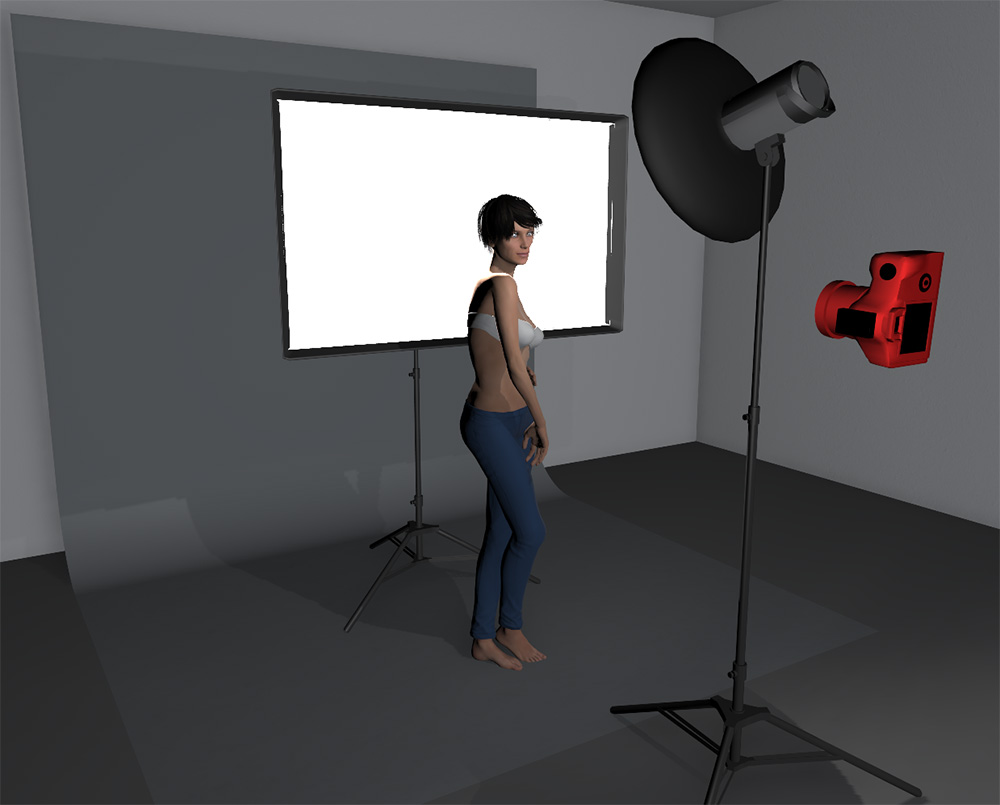

So first off what's the "classic" setup that I'm referring to? It's simply a softbox in front, and a softbox behind technique that creates a wraparound lighting effect. It has its place and it's incredibly quick and easy to setup: you place the model in front of a large softbox, then you set up another softbox/beauty dish/umbrella in front of them and take your shot. Simple.
Like I mentioned at the start, there's nothing really wrong with this setup and the images produced are perfectly usable. In fact when I worked in a commercial portrait studio we would sell a lot of these exact images because to the client, they looked a little different to the normal portrait, plus the wraparound lighting is very flattering.
As I've just mentioned there are a couple of plus points to using this setup: it's easy to set up, but mainly the wraparound lighting has a "thinning" effect on the subject. This effect is really only a byproduct of the softbox being behind the model and blowing out the highlights around the model's skin. Any time you blow your highlights in an image is far from ideal so I wanted to look at making some refinements.
I had a beauty shoot lined up and I liked the idea of this wraparound glow surrounding the model, but I really didn't want to blow out highlights anywhere as much, so I looked at modifying it with that in mind.

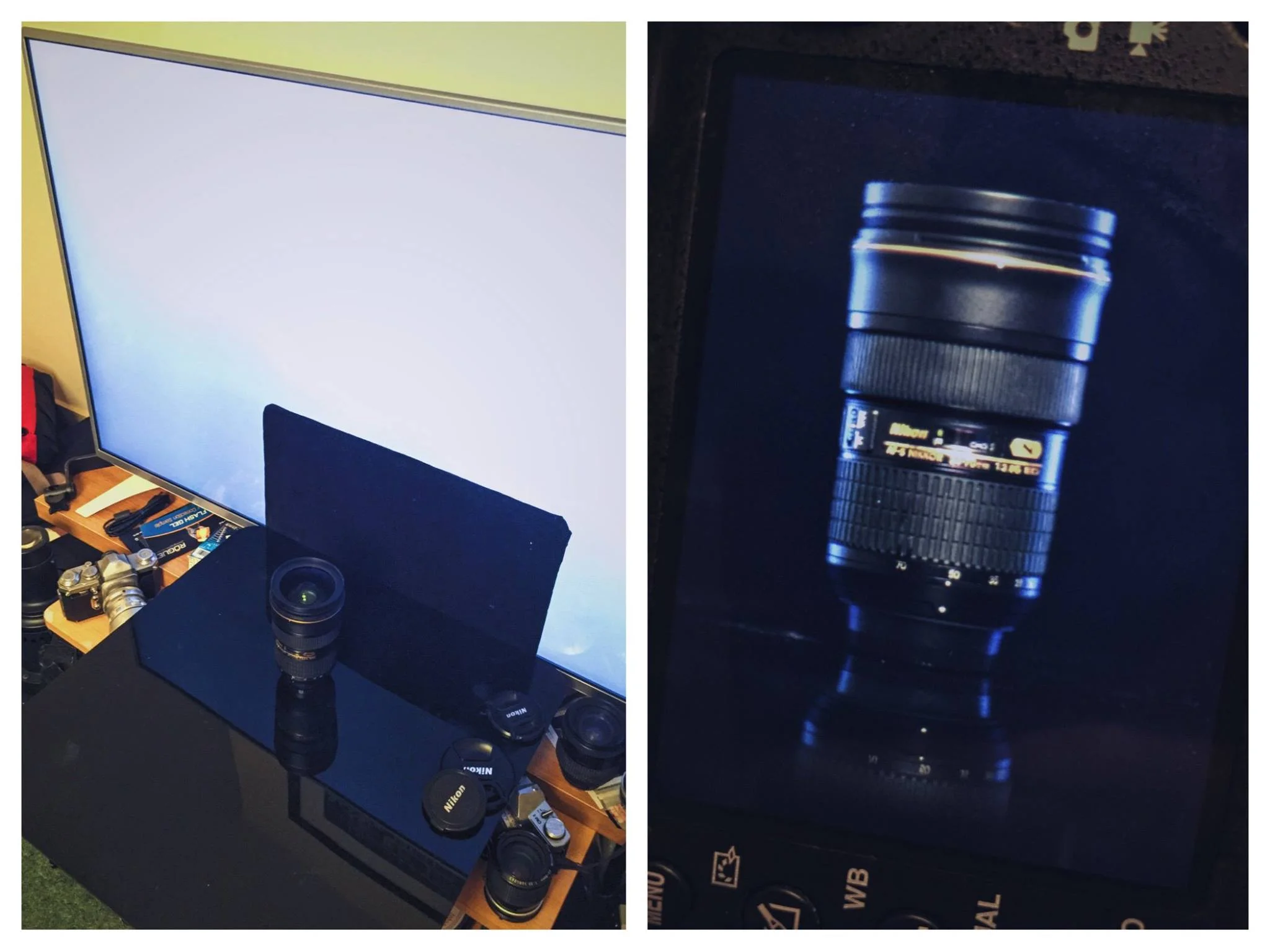

My first stop was to look at product lighting techniques that I've used in the past. The lighting technique that I'm referring to is called "dark field illumination" and I wrote an article many years ago that goes into the details of it (read the article here for those that are interested - Dark Field Illumination).
Essentially the basics of the setup are exactly the same as above; the only addition is that you include a black sheet/board or similar between your model and the softbox behind them. This allows for the light to still wrap around the subject but with the added contrast that a darker background can provide. See below for the quick-and-dirty version.

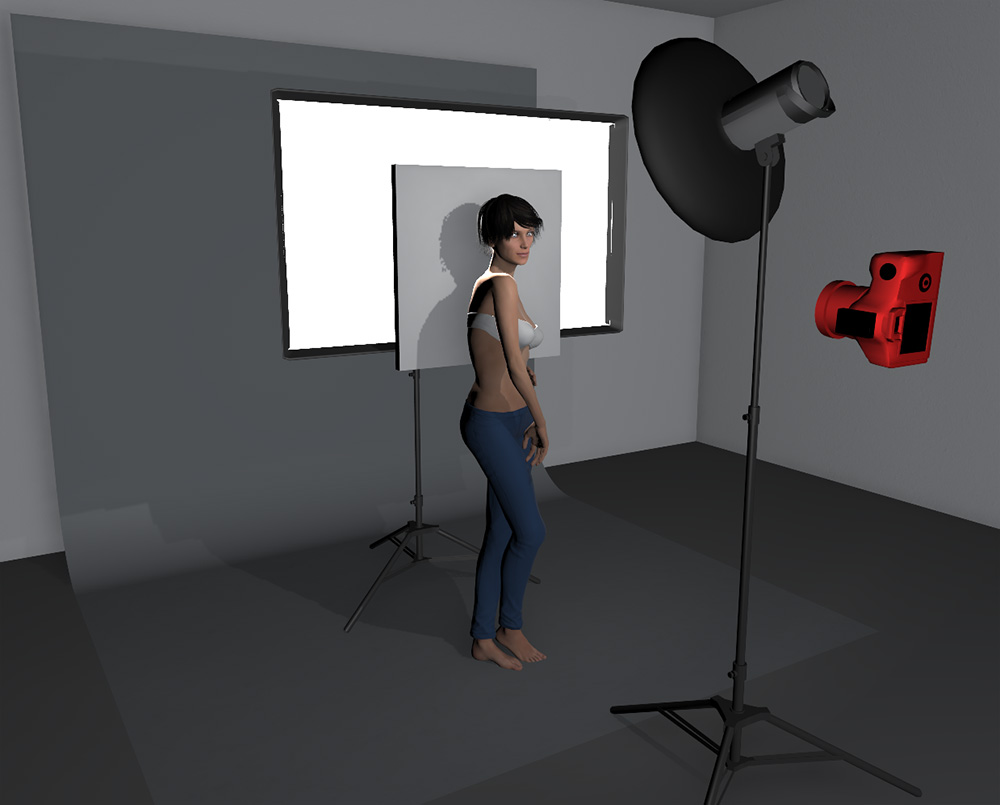

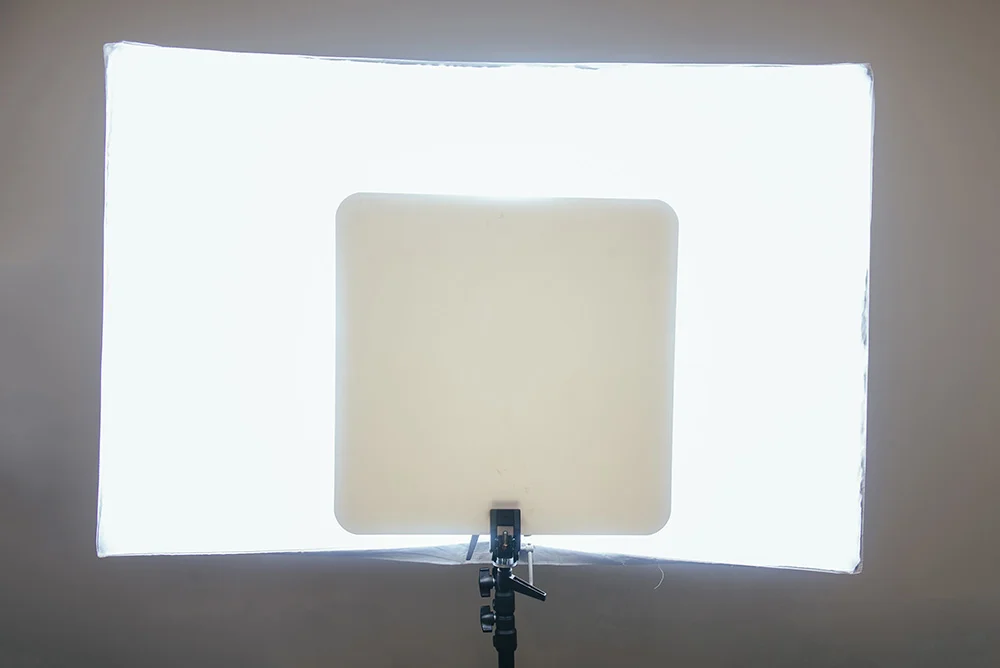

As much as I like the dark field illumination setup I still wanted a white background behind my model, but I didn't want to sacrifice the highlights as much to achieve it. The seemingly obvious solution in hindsight was to simply replace the black board for a white one - that's it: set up the dark field illumination and replace the black board for a white one. As a simple solution goes it's perfect because it gives you so much more control over the backlight power now with the addition of white board in front. It allows light to wrap around the model but if you don't want it to, you can reduce the amount the light that "eats" into the model's skin that blows the highlights out.
So there you have it, I guess you could call it my "light-field illumination" technique.
As I mentioned at the start, although I claim this to be a "refinement" for a classic lighting technique, and I will certainly be using this approach for these types of shots in the future, it doesn't mean that if you don't have that white board there it's going to look awful. This is simply an alternative that brings back a little more of the detail to the shot; in fact if you look at some of the above shots you'll see that I have still burned out the highlights on some of the edges, but the detail is there if I wanted it.
PRO TIP: If you're going to play with this technique, remember that you'll still be aiming your lens straight at the softbox behind the model; as a result you will also start to get some flaring into the lens. I personally love this effect and that is why I wanted to use this technique to begin with. One important note on that though and that's that not all flare is created equal. Meaning that different lenses will produce completely different looks without changing anything at all in the setup. I personally tried three different lenses on this setup before I decided which one I would proceed with.
Let me know what you think: have you tried the regular softbox behind the model technique before? Will you try the addition of the white board? Or have you previously used the dark-field illumination technique and think you'll give the white-field illumination a whirl instead?
If anybody has any questions on any part of this setup then please feel free to fire away below and I will try to answer them as soon as I can.
Thanks so much for reading and if you give this setup a go, then let me know as I'd love to see your results :)
